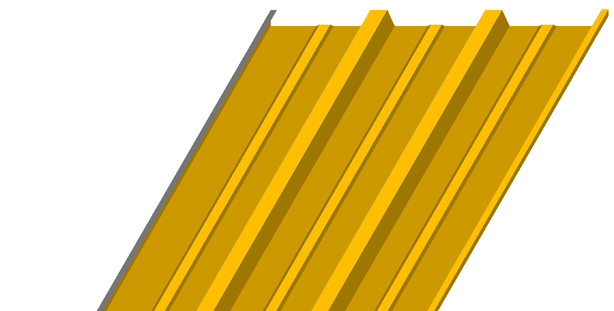

Trapezoidal Standing Seam Sheets



Type : Trapezoidal Standing Seam Sheets
Net Covering Width : 490 mm
Rib Height : 0.50 - 0.70mm

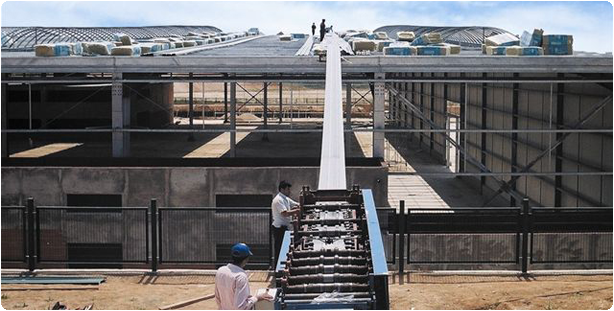

Maximum Length : İstenilen boyda şantiyede üretim

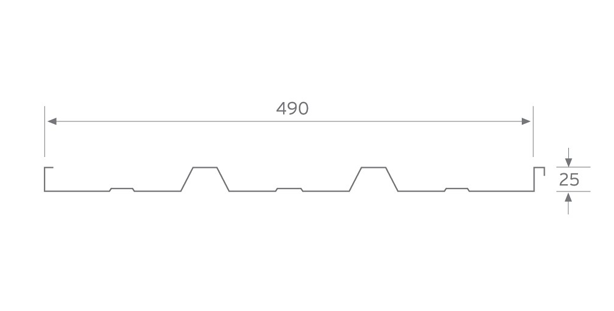

The two 25 mm high ribs in the latitudinal section of each sheet improves the inertia momentum, thus this form is more enduring than the liner standing seam sheets. Sheets whose thicknesses are determined according to the purlin spans can be produced as one piece up to 60 meters length. 25/490 trapezoidal standing seam is especially developed for industrial buildings with low pitched roofs and arc roofs with wide purlin spans.

Saç Kalınlığı Mesnet Ara Mesafeleri (m) Çatı Formu
  1.00 1.25 1.50 1.75
0.50 266 168 116 x
0.60 348 221 153 x
0.70 435 277 191 108
Yükleme iki açıklık, düzgün yayılı yük
Sehim Limiti (f.lim) I/200
Akma Gerilimi 240 N/mm2
Yük Birimi kg/m2
