Highspan Cee + Profiles



Type : Highspan Cee + Profiles
Maximum Length : 18 m

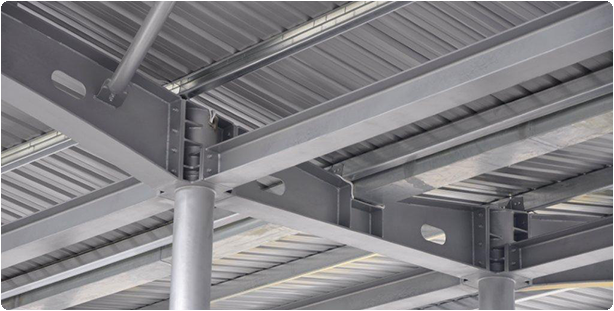

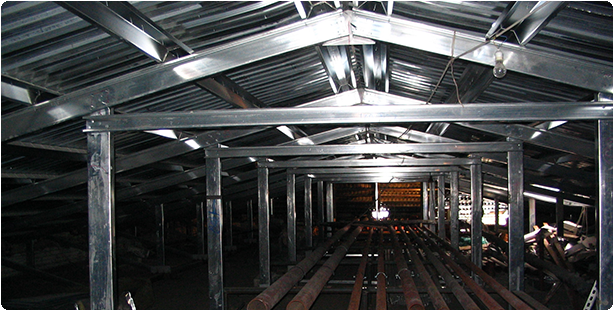

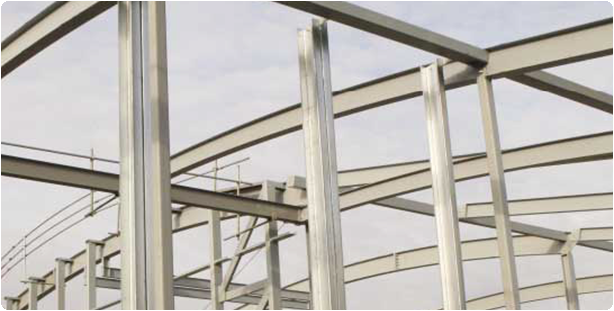

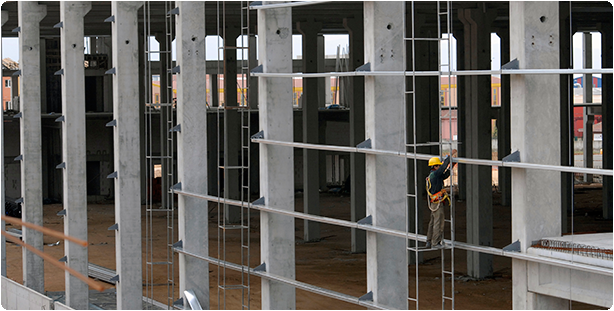

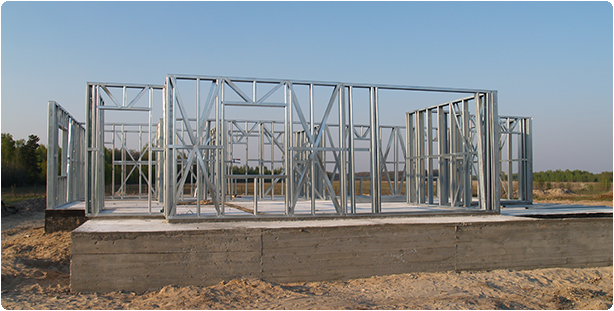

Cee+ profiles are used as purlins and side rails in industrial buildings exposed to heavy loads and as primary load bearing columns, beams and load-bearing walls in lighter/non-industrial buildings.

Highspan Cee+ profiles offer improved performance in comparison to Cee profiles for more demanding capacities and heavier loads.

Highspan Cee+ profiles offer great advantages to the design and construction of buildings

Steel construction is faster, safer and more economical with Highspan Cee+ profiles

Highspan Cee+ profiles offer a wide variety of sections manufactured to specificity of each project, thus they enable light and high-performance solutions

Highspan Cee+ profiles have very efficient load-bearing capacities with respect to their weight, thus enables up to 50% cost savings in comparison with hot-rolled sections

All assembly holes and service holes are manufactured according to CAD drawings in all three dimensions of the profile

Production is done with computer controlled high-precision machinery in compliance with EN10162

Highspan Cee+ profiles are manufactured with up to 18 meters length, with variable web sizes between 100mm and 400 mm and core metal thickness up to 4mm.

Highspan Cee+ profiles are manufactured according to the Project requirements from mild steel or from galvanized steel in different steel and corrosion resistance grades.

All profiles are marked with their pose numbers automatically during production so that sorting in site is easier.



Click here to view the table

Cee ++ D B t L1 L2 Strip Width Weight Area Bending Axis (x-x) Bending Axis (y-y) Center of Gravity
Profile mm mm mm mm mm mm kg/m   F cm² Ixeff (cm4) Wxeff (cm3) rx (cm) Iy (cm4) Wy (cm3) ry (cm) ex (cm) ey (cm)
C ++ 200-15 200 70 1,5 28,00 12,00 400 4,72 6,00 338,96 33,89 7,52 43,51 9,59 2,69 2,37 10,00
C ++ 200-20 200 73 2 28,00 12,00 400 6,29 8,00 481,05 48,11 7,75 64,10 13,31 2,83 2,48 10,00
C ++ 200-25 200 76 2,5 28,00 12,00 400 7,86 10,00 607,17 60,73 7,79 85,87 17,15 2,93 2,59 10,00
C ++ 200-30 200 78 3 28,00 12,00 400 9,43 12,00 729,15 72,93 7,80 106,84 20,79 2,98 2,66 10,00
C ++ 200-40 200 83 4 28,00 12,00 400 12,58 16,00 981,03 98,12 7,83 157,24 28,79 3,13 2,84 10,00
C ++ 270-20 270 88 2 28,00 12,00 500 7,86 10,00 1022,96 75,78 10,11 106,94 17,80 3,27 2,67 13,50
C ++ 270-25 270 90 2,5 28,00 12,00 500 9,83 12,50 1339,27 99,21 10,35 140,68 22,57 3,35 2,73 13,50
C ++ 270-30 270 93 3 28,00 12,00 500 11,79 15,00 1649,79 122,22 10,49 179,82 27,81 3,46 2,83 13,50
C ++ 270-40 270 98 4 28,00 12,00 500 15,72 20,00 2215,33 164,11 10,52 259,92 38,21 3,61 3,00 13,50
C ++ 300-20 300 74 2 28,00 12,00 500 7,86 10,00 1151,55 76,78 10,73 72,80 13,95 2,70 2,04 15,00
C ++ 300-25 300 75 2,5 28,00 12,00 500 9,83 12,50 1508,43 100,57 10,99 93,43 17,40 2,73 2,07 15,00
C ++ 300-30 300 78 3 28,00 12,00 500 11,79 15,00 1908,52 127,24 11,28 121,78 21,62 2,85 2,16 15,00
C ++ 300-40 300 83 4 28,00 12,00 500 15,72 20,00 2579,34 171,97 11,36 179,57 30,01 3,00 2,32 15,00
C ++ 370-20 370 88 2 28,00 12,00 600 9,43 12,00 1975,58 106,79 12,83 114,56 18,17 3,09 2,24 18,50
C ++ 370-25 370 90 2,5 28,00 12,00 600 11,79 15,00 2597,29 140,40 13,16 150,62 23,04 3,17 2,30 18,50
C ++ 370-30 370 93 3 28,00 12,00 600 14,15 18,00 3285,17 177,59 13,51 194,14 28,46 3,28 2,39 18,50
C ++ 370-40 370 98 4 28,00 12,00 600 18,86 24,00 4688,11 253,43 13,98 286,04 39,37 3,45 2,53 18,50
C ++ 400-20 400 73 2 28,00 12,00 600 9,43 12,00 2085,66 104,29 13,18 74,79 13,90 2,50 1,69 20,00
C ++ 400-25 400 75 2,5 28,00 12,00 600 11,79 15,00 2758,01 137,91 13,56 98,95 17,68 2,57 1,74 20,00
C ++ 4003-0 400 78 3 28,00 12,00 600 14,15 18,00 3511,82 175,60 13,97 129,01 21,97 2,68 1,83 20,00
C ++ 400-40 400 83 4 28,00 12,00 600 18,86 24,00 5141,67 257,10 14,64 194,13 30,69 2,84 1,97 20,00
