Partition Wall Profiles

PARTITION WALL PROFILES

Duvar c-50
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,613 12
3,000 0,60 0,736 12
Duvar c-75
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,715 12
3,000 0,60 0,858 12
Duvar c-100
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,810 12
3,000 0,60 0,971 12
Duvar c-125
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,908 8
3,000 0,60 1,090 8
Duvar c-150
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 1,006 8
3,000 0,60 1,207 8
Duvar u-50
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,452 12
3,000 0,60 0,542 12
Duvar u-75
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,538 12
3,000 0,60 0,646 12
Duvar u-100
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,676 12
3,000 0,60 0,811 12
Duvar u-125
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,774 8
3,000 0,60 0,929 8
Duvar u-150
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/meter)		 PACKAGING
(pcs / pack)
3,000 0,50 0,872 8
3,000 0,60 1,047 8

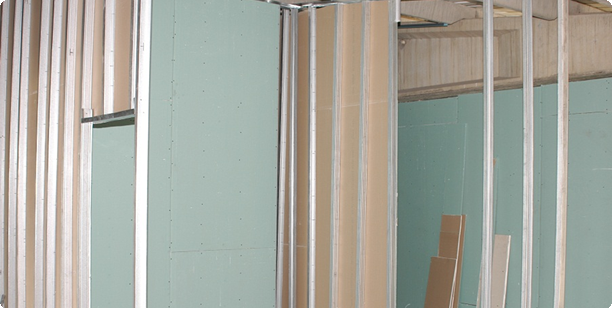

Gypsumboard Partition Wall Features

  • It is possible to produce profiles with requested sizes according to details of the project.
  • Gypsumboard dividing wall is resistant to dynamic effects because of its flexibility.
  • When gypsumboard partition wall are used in a building, since they are 9 times lighter than brick-walls, the building is more flexible during an earthquake.
  • Noise, heat and fine isolation is perfect with plaster dividing walls.
  • Fast and easy mounting and demounting provides labor and time saving.
  • Plaster dividing walls do not cause space loss much.
  • It is easy to hide installations.
  • Ph value is the same with human body. No bacterium breeding. It is economical.
  • The load per m2 with plaster dividing walls: 35 kg/m2
  • The load per m2 with brick walls: 300 kg/m2



Gypsumboard Partition Wall Materials Analysis

Type of Material
Single Plate
Wall 50/75 mm (Amount m2)
Double Plate
Wall 75/100 mm (Amount m2)
Gypsumboard
2.00 m2
4.00 m2
Wall C 75 Profile (0,60 mm)
2.20 m
2.20 m
Wall C 75 Profile (0,50 mm)
1.00 m
1.00 m
Perforated Corner Profile
Proje detayına göre
Proje detayına göre
Joint Band
2.60 m
2.60 m
Joint Plaster
1.00 kg
1.00 kg
Tromped Screw (25 mm)
20 pcs
20 pcs
Tromped Screw (35 mm)
-
20 pcs
Dowel, Screw, Spangle
4 pcs
4 pcs

* According to details of the project
