Suspended Ceiling Profiles

SUSPENDED CEILING PROFILES

Ceiling C
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/metre)		 PACKAGING
(pcs / pack)
3,000 0,50 0,483 12
3,000 0,60 0,580 12
Ceiling U
LENGTH
(mm)		 THICKNESS
(mm)		 WEIGHT
(kg/metre)		 PACKAGING
(pcs / pack)
3,000 0,50 0,295 24
3,000 0,60 0,354 24

GYPSUMBOARD SUSPENDED CEILING FEATURES

  • It is possible to produce profiles with requested sizes according to details of the project.
  • Applicable for all indoor ceiling types
  • Being light, does not transfer much load to carrier system.
  • Harmonized to movements of building, it is strong against earthquakes.
  • Easy work for infrastracture installations.
  • Creates decorative space by hiding the installations
  • Acoustic, heat and fire insulation is perfect with gypsumboard suspended ceiling. Load per m2 with plaster suspended ceiling: 20 kg/m2
  • Load per m2 with concrete ceiling: 35 kg/m2

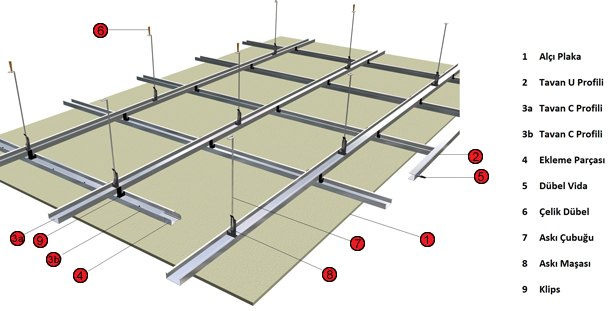

GYPSUMBOARD SUSPENDED CEILING MATERIAL ANALYSIS

Material Description Unit Feature
Gypsumboard 1.00 m2
Ceiling C-60 Profile 3,30 mt.
Ceiling C-30 Profile 1 mt.
Hanger with spring 1.30 pcs
Suspension wire 1,30 pcs
Connection Clips 4 pcs
Connector 1 pcs
Joint Band 1,30
Joint 0,50 kg
Tromped Screw 20 pcs
Steel Dowel 1,30 pcs
Dowel, Spangle, Screw 3 pcs

* The material to be used depends on details of the project.
