Type | : | Highspan Sigma Profiles |
Maximum Length | : | 18 m |

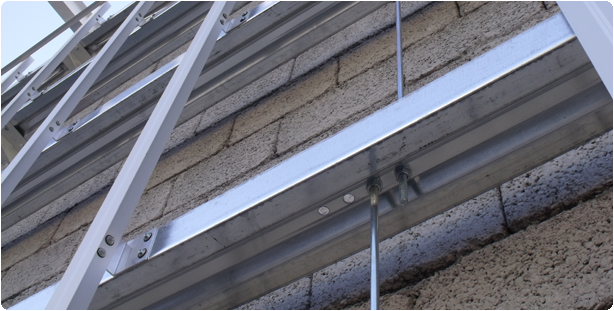

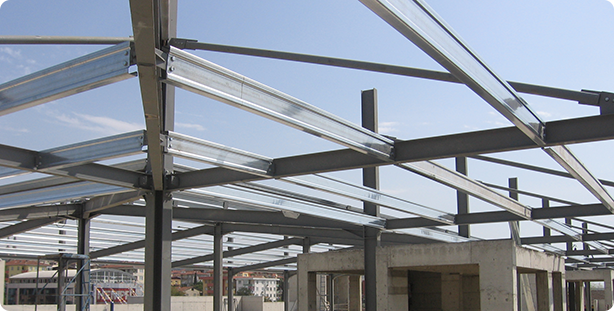

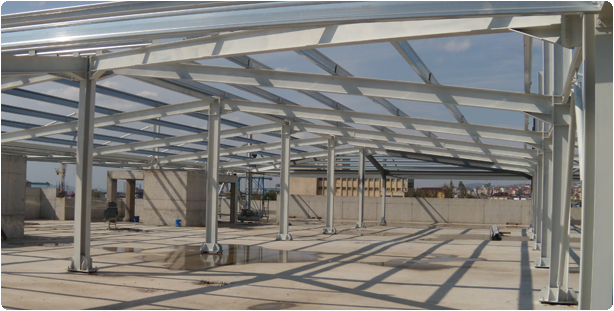

Sigma profiles are used as purlins and side rails in industrial buildings exposed to heavy loads and as primary load bearing columns, beams and load-bearing walls in lighter/non-industrial buildings.
Highspan Sigma profiles offer great advantages to the design and construction of buildings
Steel construction is faster, safer and more economical with Highspan Sigma profiles
Highspan Sigma profiles offer a wide variety of sections manufactured to specificity of each project, thus they enable light and high-performance solutions
Highspan Sigma profiles have very efficient load-bearing capacities with respect to their weight, thus enables up to 50% cost savings in comparison with hot-rolled sections
All assembly holes and service holes are manufactured according to CAD drawings in all three dimensions of the profile
Production is done with computer controlled high-precision machinery in compliance with EN10162
Highspan Sigma profiles are manufactured with up to 18 meters length, with variable web sizes between 100mm and 400 mm and core metal thickness up to 4mm.
Highspan Sigma profiles are manufactured according to the Project requirements from mild steel or from galvanized steel in different steel and corrosion resistance grades.
All profiles are marked with their pose numbers automatically during production so that sorting in site is easier.
Sigma Σ | H | B | D | L | t | Strip Width | Weight | Area | E | Bending Axis (x-x) | Bending Axis (y-y) | ex | ey | ||||
Profile | mm | mm | mm | mm | mm | mm | kg/m | F cm² | mm | Ix eff(cm4) | Wxeff(cm3) | rx(cm) | Iy (cm4) | Wy(cm3) | ry (cm) | cm | cm |
140-20 | 140 | 62 | 35 | 19 | 2 | 300 | 4,72 | 6,00 | 30 | 171,92 | 24,66 | 5,35 | 24,93 | 6,62 | 2,04 | 2,43 | 7,0 |
140-25 | 140 | 68 | 35 | 18 | 2,5 | 300 | 5,90 | 7,50 | 30 | 224,02 | 32,13 | 5,47 | 37,43 | 8,94 | 2,23 | 2,61 | 7,0 |
140-30 | 140 | 68 | 35 | 20 | 3 | 300 | 7,07 | 9,00 | 30 | 268,13 | 38,46 | 5,46 | 45,73 | 11,06 | 2,25 | 2,66 | 7,0 |
170-20 | 170 | 60 | 35 | 19 | 2 | 330 | 5,19 | 6,60 | 60 | 263,67 | 31,21 | 6,32 | 23,04 | 6,38 | 1,87 | 2,39 | 8,55 |
170-25 | 170 | 64 | 35 | 17 | 2,5 | 330 | 6,48 | 8,25 | 60 | 333,63 | 39,50 | 6,36 | 31,42 | 7,99 | 1,95 | 2,47 | 8,55 |
170-30 | 170 | 64 | 35 | 19 | 3 | 330 | 7,78 | 9,90 | 60 | 400,36 | 47,39 | 6,36 | 38,42 | 9,89 | 1,97 | 2,52 | 8,55 |
200-20 | 200 | 70 | 32 | 20 | 2,00 | 375 | 5,90 | 7,51 | 90 | 450,19 | 45,02 | 7,74 | 33,65 | 7,92 | 2,12 | 2,75 | 10,00 |
200-25 | 200 | 70 | 32 | 22 | 2,50 | 375 | 7,38 | 9,39 | 90 | 562,71 | 56,27 | 7,74 | 42,71 | 10,16 | 2,13 | 2,80 | 10,00 |
200-30 | 200 | 70 | 32 | 24 | 3,00 | 375 | 8,85 | 11,26 | 90 | 675,00 | 67,50 | 7,74 | 51,97 | 12,51 | 2,15 | 2,84 | 10,00 |
200-40 | 200 | 80 | 32 | 18 | 4,00 | 375 | 11,79 | 15,00 | 90 | 922,09 | 92,21 | 7,84 | 83,50 | 16,79 | 2,36 | 3,03 | 10,00 |
230-20 | 230 | 70 | 47 | 18 | 2,00 | 400 | 6,29 | 8,00 | 90 | 613,41 | 53,34 | 8,76 | 36,03 | 8,04 | 2,12 | 2,52 | 11,50 |
230-25 | 230 | 70 | 47 | 19 | 2,50 | 400 | 7,86 | 10,00 | 90 | 762,81 | 66,33 | 8,73 | 44,91 | 10,08 | 2,12 | 2,54 | 11,50 |
230-30 | 230 | 70 | 47 | 20 | 3,00 | 400 | 9,43 | 12,00 | 90 | 910,65 | 79,19 | 8,71 | 53,73 | 12,13 | 2,12 | 2,57 | 11,50 |
230-40 | 230 | 75 | 47 | 19 | 4,00 | 400 | 12,58 | 16,00 | 90 | 1229,27 | 106,89 | 8,77 | 79,81 | 16,64 | 2,23 | 2,70 | 11,50 |
300-20 | 300 | 80 | 52 | 21 | 2,00 | 500 | 7,86 | 10,00 | 150 | 1276,27 | 85,08 | 11,30 | 55,11 | 10,58 | 2,35 | 2,79 | 15,00 |
300-25 | 300 | 82 | 52 | 21 | 2,50 | 500 | 9,83 | 12,50 | 150 | 1602,68 | 106,85 | 11,32 | 71,82 | 13,43 | 2,40 | 2,85 | 15,00 |
300-30 | 300 | 83 | 52 | 22 | 3,00 | 500 | 11,79 | 15,00 | 150 | 1929,26 | 128,62 | 11,34 | 88,71 | 16,45 | 2,43 | 2,91 | 15,00 |
300-40 | 300 | 85 | 52 | 25 | 4,00 | 500 | 15,71 | 19,98 | 150 | 2601,73 | 173,45 | 11,41 | 127,53 | 23,34 | 2,53 | 3,03 | 15,00 |
370-20 | 370 | 92 | 52 | 25 | 2,00 | 600 | 9,43 | 12,00 | 220 | 2269,95 | 120,37 | 13,75 | 83,32 | 13,75 | 2,64 | 3,14 | 18,14 |
370-25 | 370 | 93 | 52 | 25 | 2,50 | 600 | 11,79 | 15,00 | 220 | 2910,79 | 157,34 | 13,93 | 107,51 | 17,56 | 2,68 | 3,18 | 18,50 |
370-30 | 370 | 95 | 52 | 25 | 3,00 | 600 | 14,15 | 18,00 | 220 | 3507,18 | 189,58 | 13,96 | 133,94 | 21,39 | 2,73 | 3,24 | 18,50 |
370-40 | 370 | 97 | 52 | 27 | 4,00 | 600 | 18,86 | 24,00 | 220 | 4703,03 | 254,22 | 14,00 | 188,06 | 29,59 | 2,80 | 3,35 | 18,50 |
400-20 | 400 | 80 | 52 | 23 | 2,00 | 600 | 9,43 | 12,00 | 250 | 2545,00 | 124,74 | 14,56 | 57,26 | 11,01 | 2,18 | 2,80 | 19,60 |
400-25 | 400 | 80 | 52 | 24 | 2,50 | 600 | 11,79 | 15,00 | 250 | 3224,37 | 160,39 | 14,66 | 71,33 | 13,77 | 2,18 | 2,82 | 19,90 |
400-30 | 400 | 81 | 52 | 24 | 3,00 | 600 | 14,15 | 18,00 | 250 | 3886,63 | 194,33 | 14,69 | 86,54 | 16,49 | 2,19 | 2,85 | 20,00 |
400-40 | 400 | 85 | 52 | 25 | 4,00 | 600 | 18,86 | 24,00 | 250 | 5255,69 | 262,78 | 14,80 | 127,91 | 23,17 | 2,31 | 2,98 | 20,00 |
