Liner Standing Seam Sheets
| Type | : | Liner Standing Seam Sheets |
| Net Covering Width | : | 325-525 mm |
| Rib Height | : | 0.50-0.70mm |

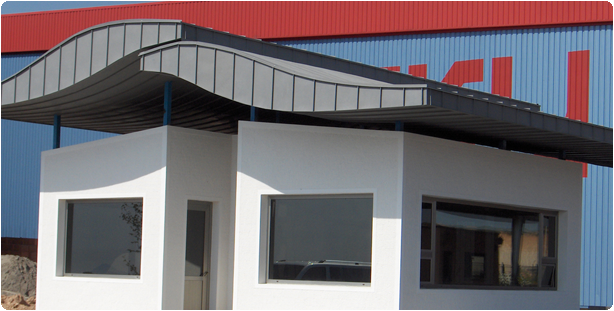

Almetsan liner standing seam sheets are produced on-site with mobile roll-forming machines. Thus the system enables problem-free solution of detailed and low-pitched roofs. According to project details, it is possible to produce the sheets in different widths in the range of 325 – 525 mm. Project-oriented details are easily applied. Standing seam sheets can be formed in convex, conical and conical convex shapes. The sheets are first roll-formed then go through a second process to make cladding of arc and canopy-shaped roofs possible.
| Ağırlıklar | |||||
| Tip | Net Kaplama Eni (mm) | Rulo Eni (mm) | 0.50mm | 0.60mm | 0.70mm |
| KSD 25/325 | 325 | 400 | 4.84 | 5.80 | 6.77 |
| KSD 25/425 | 425 | 500 | 4.63 | 5.55 | 6.48 |
| KSD 25/525 | 525 | 600 | 4.50 | 5.39 | 6.29 |
| Ağırlıklar | |||||
| Tip | Net Kaplama Eni (mm) | Rulo Eni (mm) | 0.50mm | 0.60mm | 0.70mm |
| KSD 25/325 | 325 | 400 | - | 2.02 | 2.36 |
| KSD 25/425 | 425 | 500 | - | 1.93 | 2.25 |
Form Özellikleri: Düz, tonoz, konveks, konkav, konik, konik konveks
